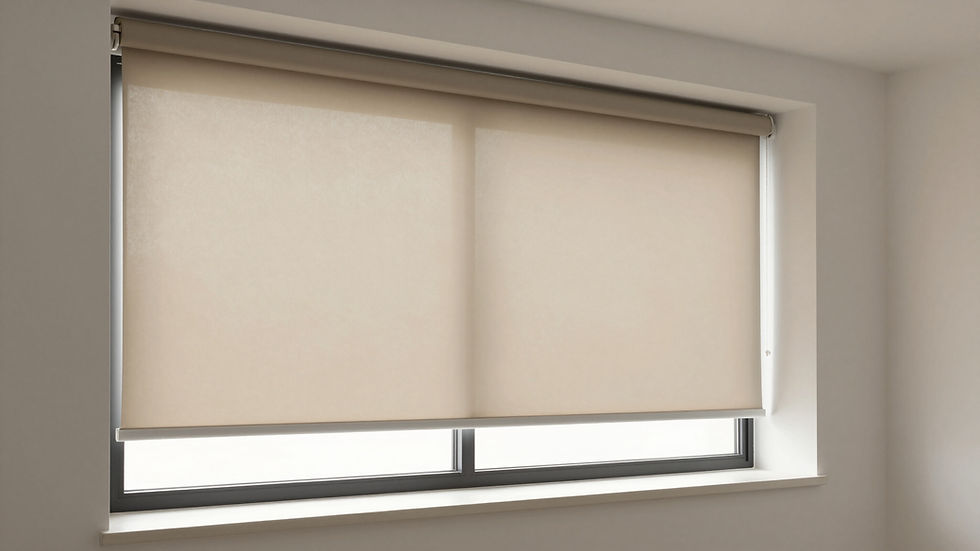

Inside Mount – When and Why
Inside mount is the most popular choice when you want a clean, built-in look and your window has enough depth for the shade to sit fully inside the frame.
It’s ideal when:
• The window frame is straight and not twisted or uneven.
• There are no handles or obstacles that will hit the fabric.
• You want to show off the trim or molding around the window.
Inside mount gives a minimal, premium look and helps the shade feel fully integrated into your window design.

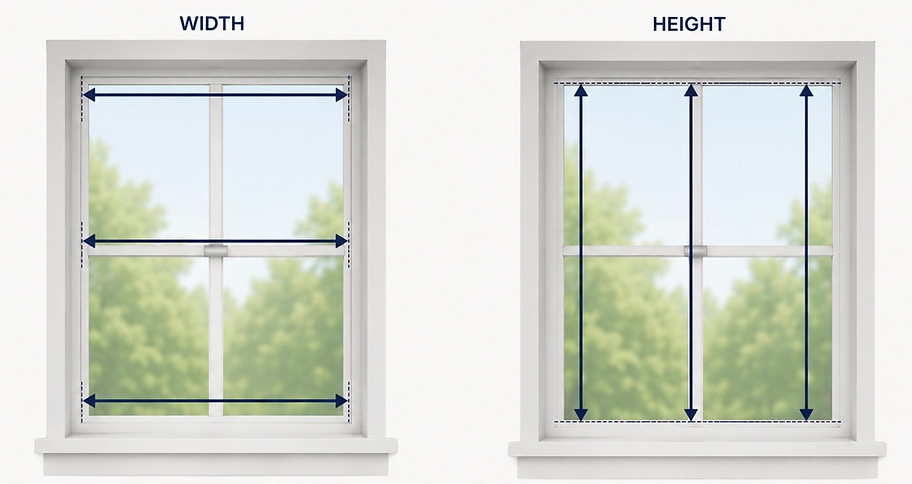

How to Measure (Inside Mount)
Step 1: Measure Width
- Measure the inside width at top, middle, and bottom.
- Record the narrowest measurement.
- Do not make any deductions; the factory will do that for you.
- Measure the inside height at left, center, and right.
- Record the longest measurement.
- For certain products, height deductions may be applied.
Step 2: Measure Height
Important Notes
Always use a metal measuring tape for accuracy. Round measurements to the nearest 1/8 inch. Ensure window frame has sufficient depth to avoid light gaps.
Recommended Minimum Depth
Product Type
Min. Depth Required
Roller Shades
2.5"
Zebra Shades
2.5"
Solar Shades
2.5"
Blackout Shades
2.5"
Drapery
4"
